Avant
Robinetterie temporisée sur plage pour lavabo avec bouton-poussoir et manette latérale pour le réglage de la température
REF: A5A3A79C00
Pièces détachées
1
KIT BOUTON TEMPO. AGUA MIXTE 845.10
Ref: AG0301200R
3
Ref: AG0301400R
6
KIT ASSEMBLAGE DE FIXATION S. 845-545
Ref: AG0301700R
7
KIT ENSEMBLE DE CARTOUCHE 09050-153U6H
Ref: AG0301600R
9
KIT COUV. CONTRÔLE DU MÉLANGE PARA 02512
Ref: AG0301500R
10
KIT ÉPINGLE CONT. MIXAGE PARA 545-845
Ref: AG0301800R

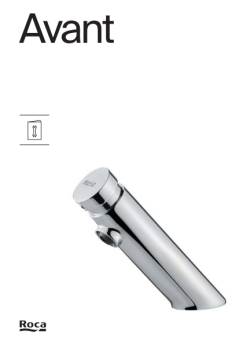

Manuel d'installation

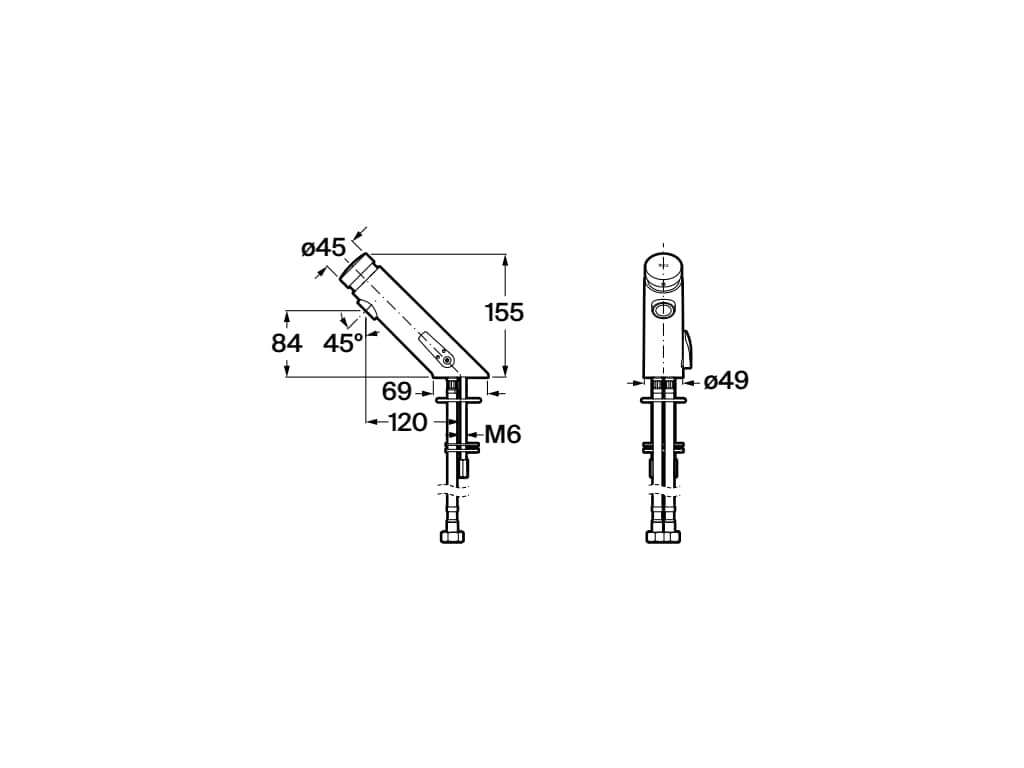

Schémas techniques
