Result 9 from 69

DUPLO WC L - Concealed structure for toilet with dual flush cistern. Allows front or top activation. 90 ø / 110 ø elbow

REF: A8901210A0

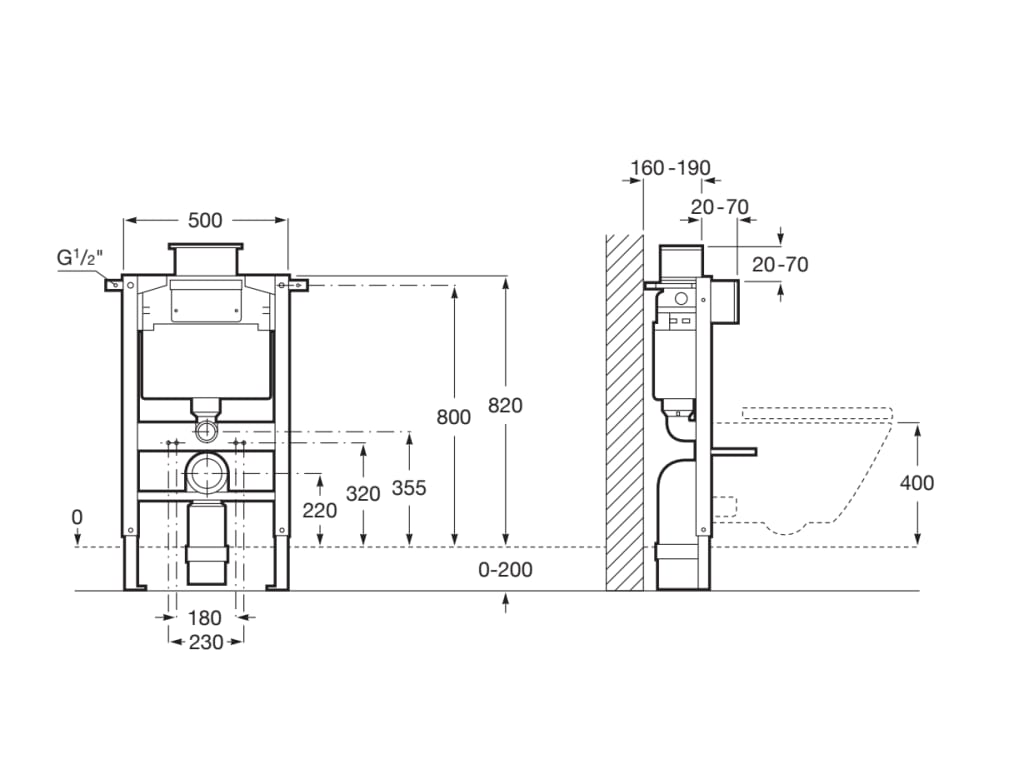

Download exploded plan view all dimensions

Download exploded plan view all dimensions

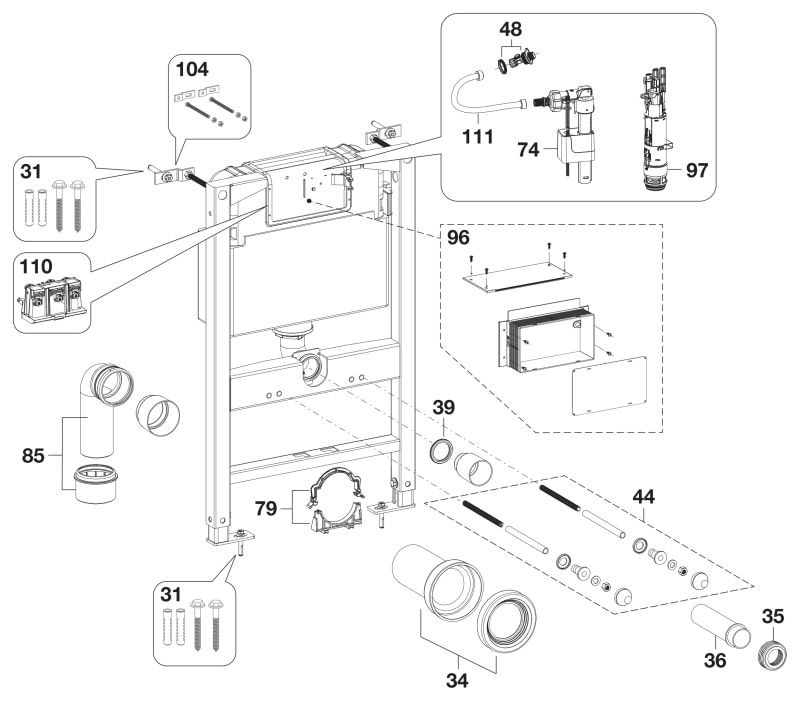

Download exploded plan

Download exploded plan

Spare parts

31

DC8 floor/wall fixation screw kit

Ref: AV0019500R

Available Online (VAT included)

9_{.02 €}

34

35

36

Duplo Compact 80mm outlet pipe kit

Ref: AV0018600R

Available Online (VAT included)

44_{.81 €}

35

Connection gasket kit for Duplo Compact 80mm toilet

Ref: AV0018700R

Available Online (VAT included)

22_{.93 €}

39

Ring gasket kit for Duplo Compact 80mm

Ref: AV0019200R

Available Online (VAT included)

6_{.60 €}

44

Duplo Compact 80mm toilet fixation kit

Ref: AV0018500R

Available Online (VAT included)

39_{.90 €}

48

Stopcock kit for Duplo DC8

Ref: AV0017700R

Available Online (VAT included)

33_{.11 €}

74

Fill valve for Duplo "underwindow" 3/8' plastic

Ref: AV0029400R

Available Online (VAT included)

51_{.60 €} 68.09 €

79

Pipe flange kit for Duplo WC l

Ref: AV0031700R

Available Online (VAT included)

21_{.65 €}

Evacuation elbow kit Ø90/Ø100mm WID WC l

Ref: AV0042500R

Available Online (VAT included)

44_{.69 €}

96

Duplo WC L protection kit

Ref: AV0043700R

Available Online (VAT included)

26_{.56 €}

104

Duplo WC L wall fixation kit

Ref: AV0042700R

Available Online (VAT included)

43_{.64 €}

110

Tank drive support kit for Duplo L&LH systems

Ref: AV0045400R

Available Online (VAT included)

22_{.46 €}

111

Flexible kit for feeding Basic Tank/Duplo WC L

Ref: AV0050000R

Available Online (VAT included)

64_{.23 €}

Compatible Product

Flush mechanism for Duplo 'Underwindow'

Ref: A890858100

Available Online (VAT included)

47_{.03 €}

Compatible products

PL5 DUAL - Dual flush operating plate for concealed cistern

REF: A890099000

250 x 160

PL4 DUAL - Dual flush operating plate for concealed cistern

REF: A890098000

250 x 160

PL3 PRO SINGLE - Vandal-proof stainless steel single flush operating plate for concealed cistern

REF: A890097104

259 x 169

PL3 PRO DUAL - Vandal-proof stainless steel dual flush operating plate for concealed cistern

REF: A890097004

259 x 169

PL2 SINGLE - Single flush operating plate for concealed cistern

REF: A890096100

250 x 160

PL2 DUAL - Dual flush operating plate for concealed cistern

REF: A890096000

250 x 160

PL1 SINGLE - Single flush operating plate for concealed cistern

REF: A890095100

250 x 160

PL1 DUAL - Dual flush operating plate for concealed cistern

REF: A890095000

250 x 160

PL10 DUAL - Dual flush operating plate for concealed cistern with matt finishes

REF: A890089207

250 x 160

PL10 DUAL - Dual flush operating plate for concealed cistern

REF: A890089000

250 x 160

PL7 DUAL - Dual flush operating plate for concealed cistern (crystal finish)

REF: A890088309

250 x 160

PL7 DUAL - Dual flush operating plate for concealed cistern

REF: A890088207

250 x 160

Technical drawings

Technical Drawings

Technical Drawings
