DUPLO WC COMPACT - Concealed floor standing structure with compact cistern (8 cm) and dual flush (4/2 - 4.5/3 - 6/3 L). 90 ø elbow.

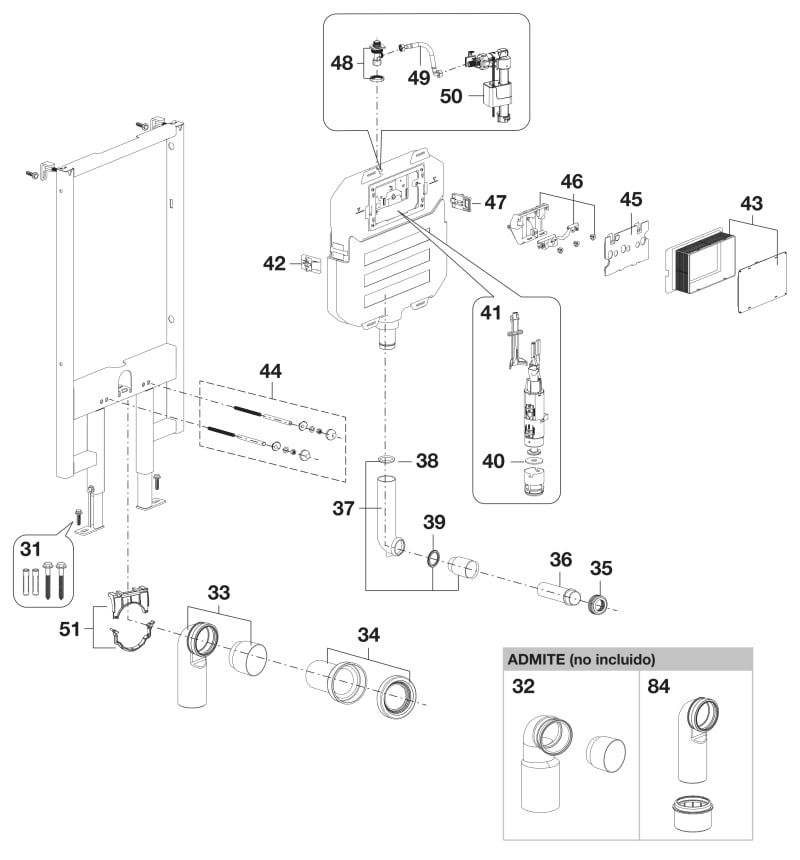

Spare parts
DC8 floor/wall fixation screw kit
Ref: AV0019500R
Outlet elbow Ø90mm for Duplo Compact 80mm
Ref: AV0018900R
Outlet pipes for Duplo Compact 80mm
Ref: AV0018600R
Connection seal for Duplo Compact 80mm toilet
Ref: AV0018700R
Flush pipe for Duplo Compact 80mm
Ref: AV0019000R
Ref: AV0019100R
Ring seal 80mm for Duplo Compact
Ref: AV0019200R
Ref: AV0018100R
Flush valve for Duplo WC compact
Ref: AV0018000R
Ref: AV0018400R
Fixing set for Duplo Compact 80mm toilet
Ref: AV0018500R
Actuation mechanism cover in Duplo Compact DC8
Ref: AV0018300R
Support for mechanical actuators Duplo DC8
Ref: AV0018200R
Ref: AV0017700R
Supply hose for DC8 wall-hung toilet
Ref: AV0017800R
Fill valve for Duplo WC compact 3/8' plastic
Ref: AV0017900R
Allowed spareparts (not included)
Evacuation elbow Ø110mm for Duplo Compact 80mm
Ref: AV0018800R
Evacuation elbow Ø90/Ø100mm WDI Compact
Ref: AV0042400R
