Monodin
Wall-mounted bath-shower mixer with automatic diverter, Natura hand-shower, 1.70 m flexible shower hose and wall bracket
REF: A5A208GC00

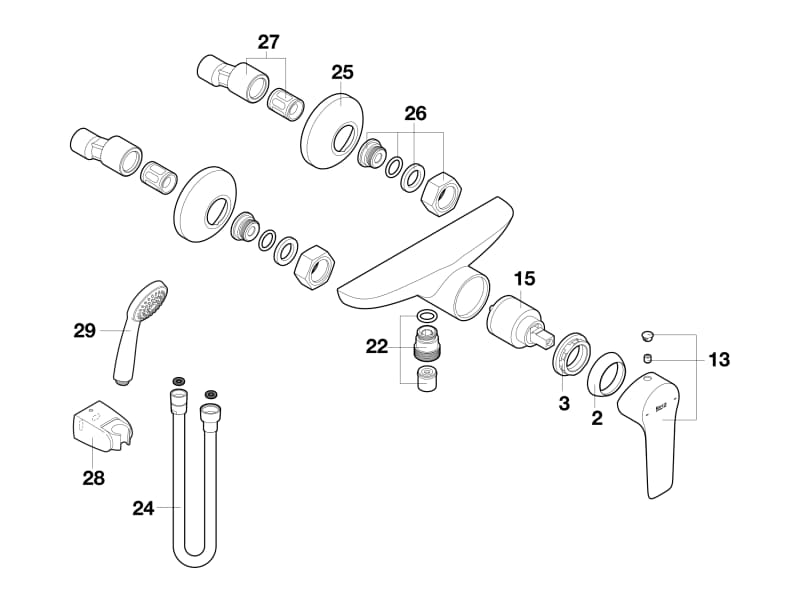

Spare parts
2
Ref: AG0281000R
3
KIT NUT FIXATION CARTRIDGE FIX. NUT Ø35
Ref: AG0281100R
13
Ref: AG0280400R
15
KIT CARTRIDGE CLOSED CENTERED 90º
Ref: AG0280700R
22
Ref: AG0282000R
24
KIT SHOWER FLEX. PVC 1.7MTS. TPE
Ref: AG0285300R
25
Ref: AG0282100R
26
Seat and nut set for wall fixing of bath-shower tap Chrome
Ref: AG0213100R
Eccentric 1/2"x3/4" L50mm with anti-noise for tap (2 pcs)
Ref: AG0103908R
28
Wall-mounted articulated support for Mitos shower
Ref: AG0105900R
29
Ref: AG0082700R

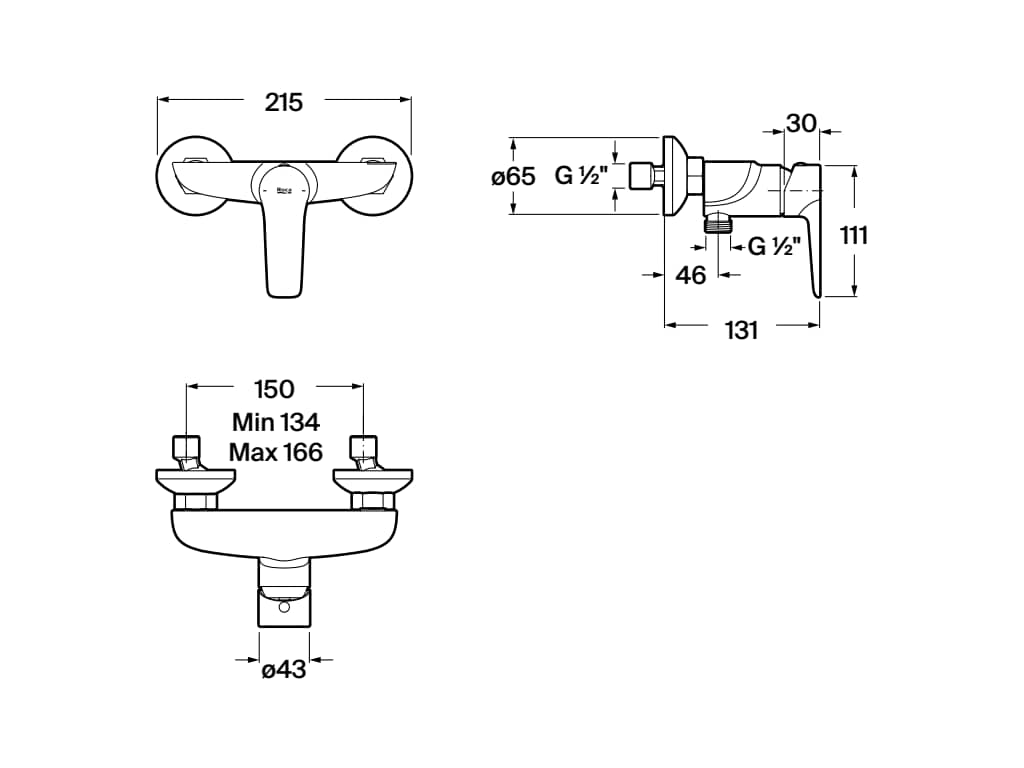

Technical Drawings
Technical Drawings
